Beverages / Pharmaceuticals 10000ml/H Laboratory Spray Dryer

Place of Origin : China

Brand Name : OEM

Certification : CE;ISO

MOQ : 1 set

Price : Negotiable

Packaging Details : Standard export Carton

Delivery Time : 20-30days

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Type : Spray Drying Equipment

Application : Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition : New

Voltage : 220v

Power(W) : 4500w

Dimension(L*W*H) : 800*6001300mm

Key Selling Points : Automatic

Warranty : One Year

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertis

After-sales Service Provided : Engineers available to service machinery overseas, Video technical support

Max capacity : 1500-2000ml/h

Temperature range of Inlet air : 40°C -300°C

Temperature range of outlet air : 40°C -140°C

Precision of temperature : ± 1 °C

Dryer time : 1.0-1.5 S

Speed of squirt pump : 50-2000ml/h

Spray system : two liquid nozzle (0.5/0.7/0.75/1.0/1.5/2.0/2.5mm)

Spray direction : downwards co-current

Heater power : 3KW 220V

Weight : 180kg

Contact Now

Beverages / Pharmaceuticals 10000ml/H Laboratory Spray Dryer

Product Description

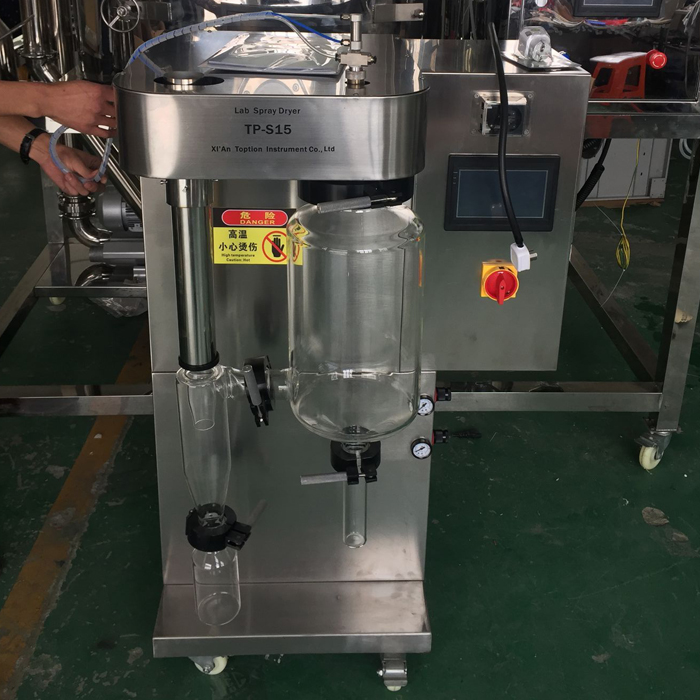

Laboratory table top spray dryer is the latest type which adopts advanced international technology and spare parts. Laboratory Spray Dryer assembles many of new design, for example, small size for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and functions are controlled by PLC.

Item	Unit	TP-S15	TP-S30	TP-S50	TP-S100
Max capacity	ml/h	1500-2000	3000	5000	10000
Temperature range of inlet air	℃	40℃ ~ 300℃	30°C ~ 300°C Adjustable	140°C ~ 300°C	50℃ ~ 300℃
				Adjustable
Temperature range of outlet air	℃	80℃ ~ 90℃	30°C ~ 140°C	80°C ~ 90°C	80℃ ~ 90℃
Spray system	/	Two-fluid nozzle	Centrifugal nozzle	Centrifugal nozzle	Centrifugal nozzle
Precision of temp	℃	±1

Dryer time	S	1.0 ~ 1.5

Speed of squirt pump	ml/h	50-2000	3000	5000	10000
Spray direction	/	Downwards co-current

Heater Power	/	3.5KW	4.5KW	6.8KW	2.8KW
Total power	/	4.5KW 220V	5.5KW 220V	9KW,380V	3.2KW 380V
Heat source	/	Electric

Air compressor	/	Built-in oil-free air compressor

Dried powder restoring rate	%	≥95			≥98

Dimension	mm	9408501500	8809801550	18009302200	250016002800
Maximum moisture evaporation		2	3	5	10
	Kg/h

Application

Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.

Advantage

1. Stainless steel material, arc corner design and polyester powder coated shell, prevents corrosion of acidity and alkaline air effectively.
2. Imported Schneider electrical components which is more stability.
3. PLC control system, make your research more easier and efficient.
4. Build in oil-free air compressor, without any noise.
5. Self-priming peristaltic pump, avoid secondary pollution, make sure whole process conducted steady and smoothly.
6. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
7. Innovative tower wall purging device, improves the material recycling rate.
8. High speed of drying, after spraying of the material liquid, the surface area of material will be increased greatly, make your research more efficient.
9. In the hot-air flow, 95%~98% of water can be evaporated at a moment. You can finish material drying only in several seconds.
10. Especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
